Upload media assets and explore their detailed information in the RMS Console. This guide explains how to upload content and access properties of assets.
In this article:
Before you begin
Sign in and add a storage account: RMS Console: Start Guide

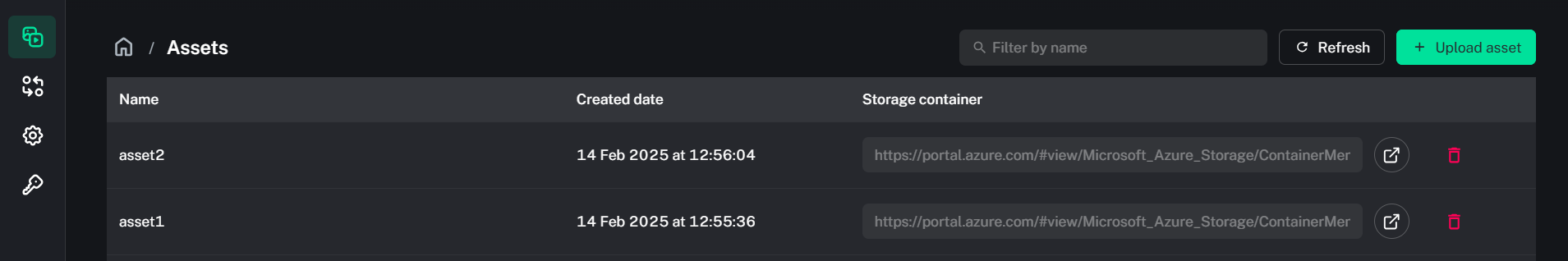

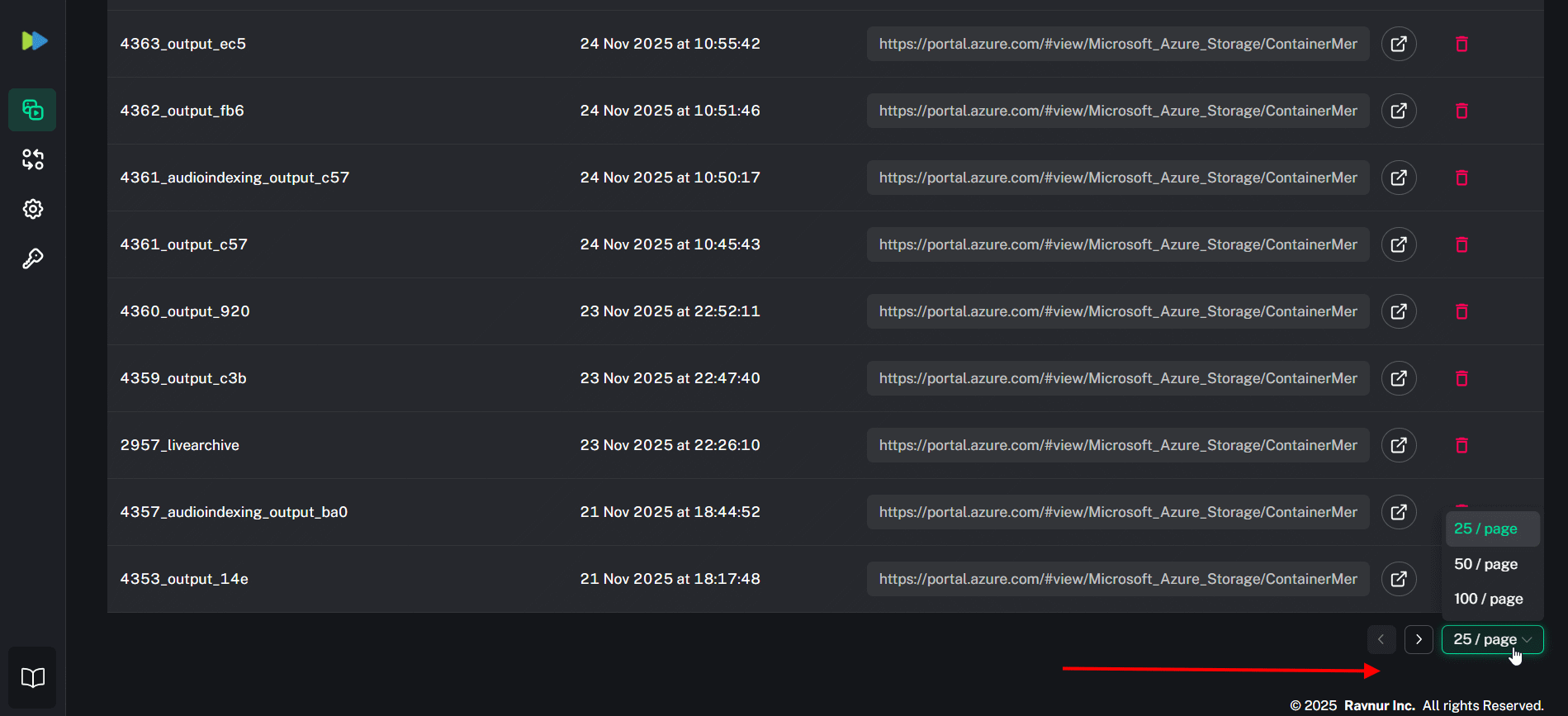

Asset list

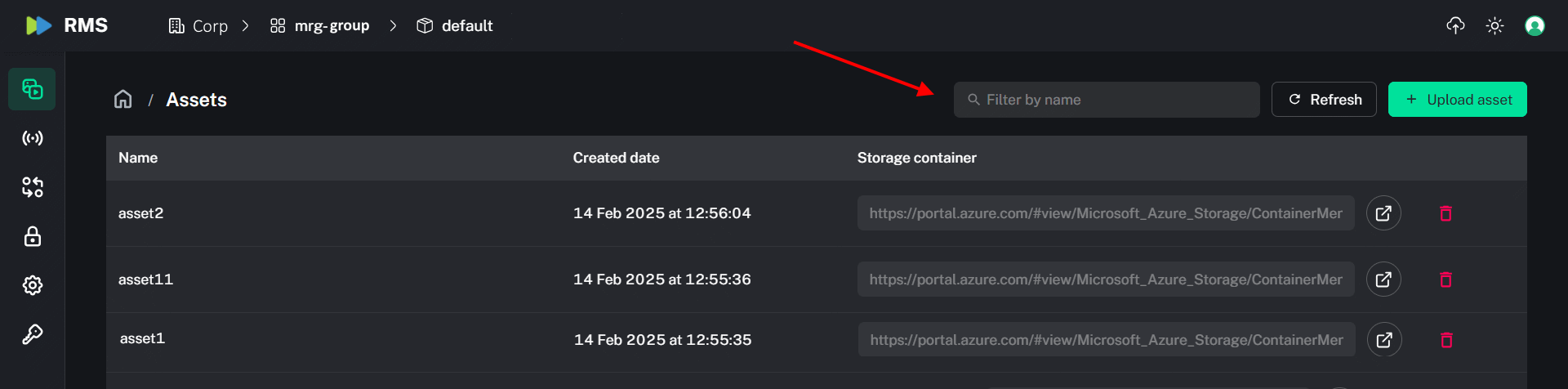

Filter assets by name or use the refresh button to update the view. Each asset entry includes a link to view its details in the Azure Portal.
This page displays assets from your Primary Storage account.

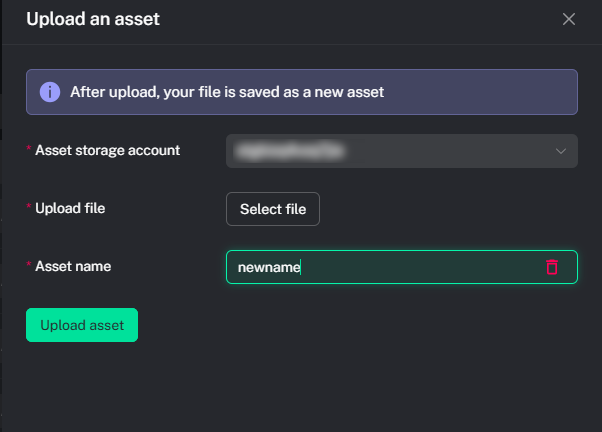

Upload asset
Learn how to upload your media files.
1. In the Assets tab, select➕Upload asset.
2. Click on Select file and choose the media from your local machine.
Ensure the media you upload is in a supported input format.
3. A unique asset name will be generated (including the upload timestamp), but you can rename the asset and click Upload asset.
A default name is generated based on your media file, but you can modify it. Only use letters, numbers, underscores, and hyphens.
Once the upload is complete, you can create an encoding job and publish the asset.

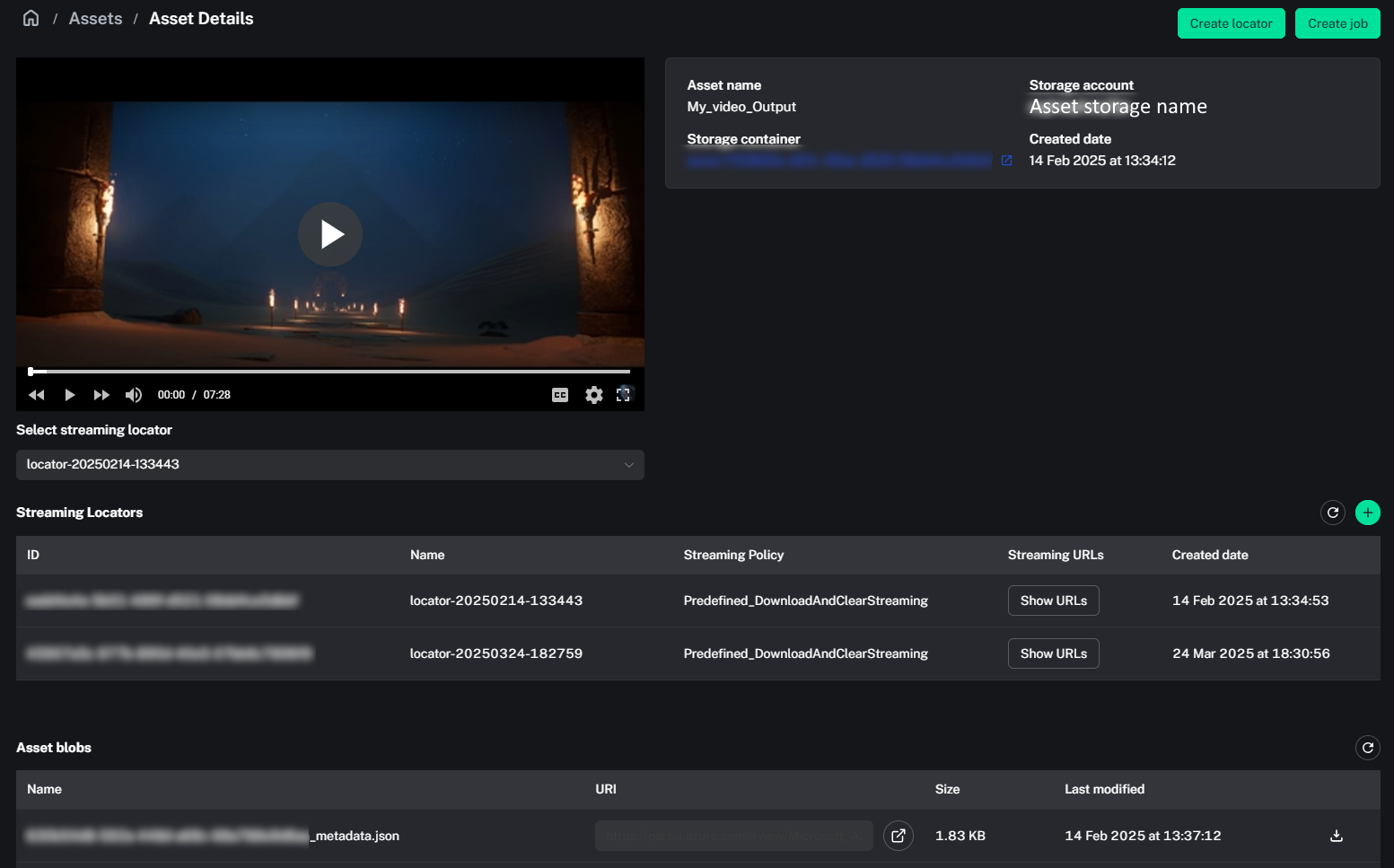

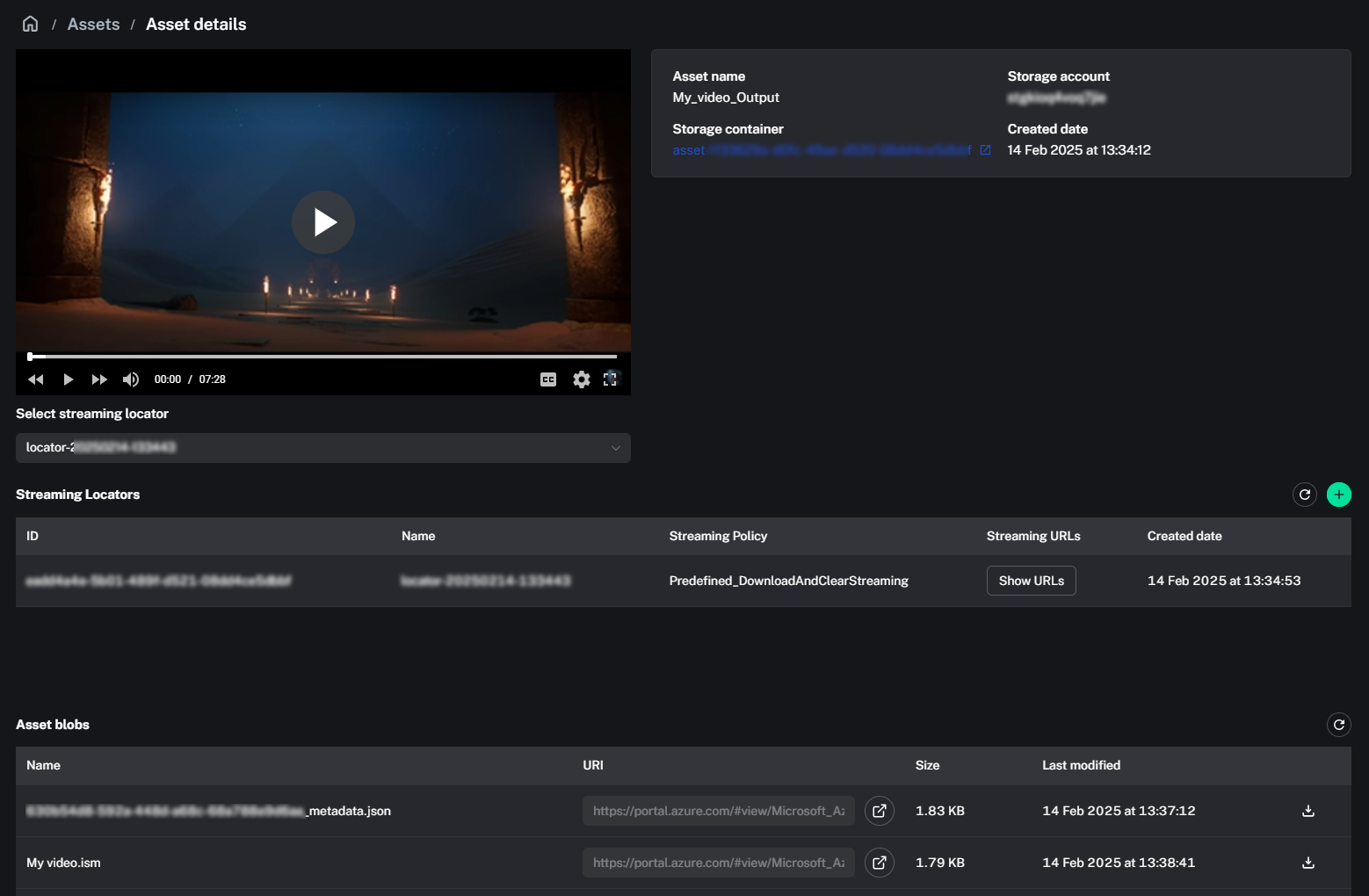

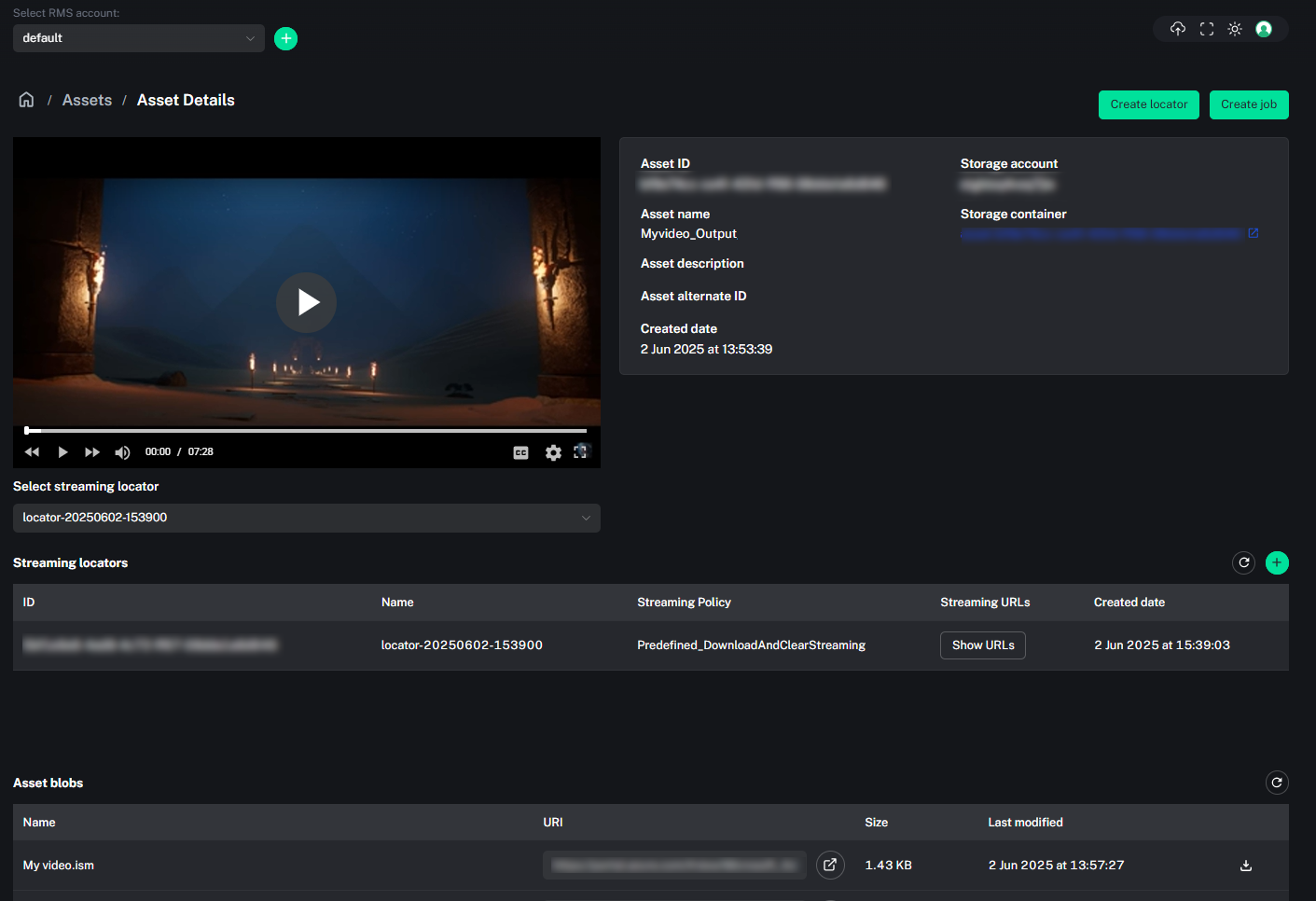

Asset details
After uploading an asset, you can review its details through the following components:
- Player
- Asset Information
- Streaming Locators
- Asset Blobs

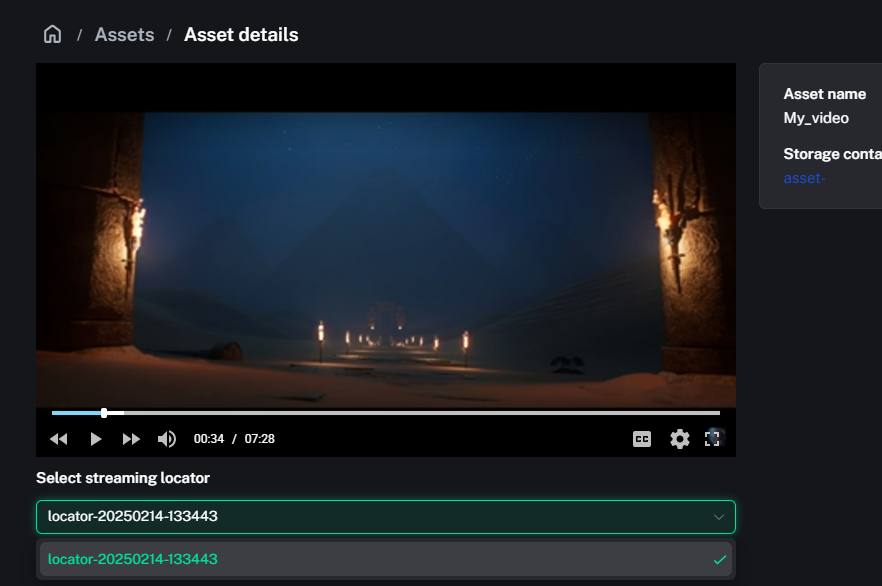

Player
Built-in RavPlayer supports standard playback controls, quality settings, and accessibility features. RavPlayer is open-source - learn more.
Video playback becomes available when:
1. A job completes processing the asset
2. A locator that allows streaming is created (policies other than ClearKey or DownloadOnly)
The player supports both AES-encrypted and DRM-protected content playback.
DRM supports Widevine and FairPlay playback. PlayReady Console playback support is in development (PlayReady DRM is functional for RMS).

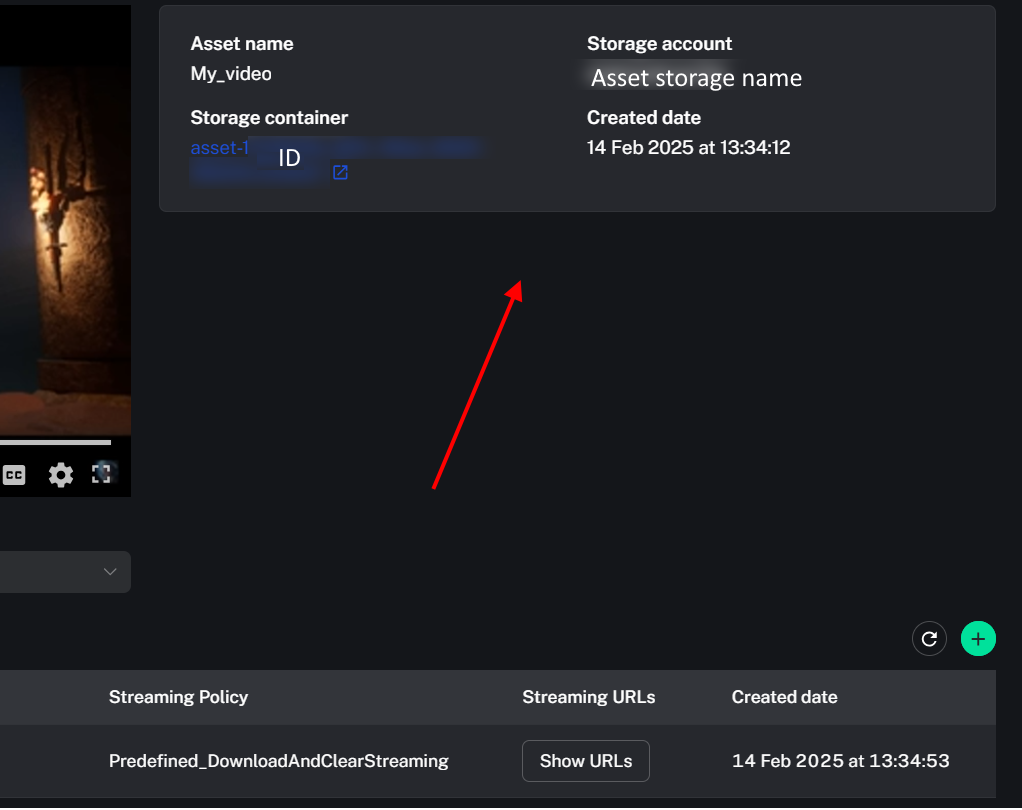

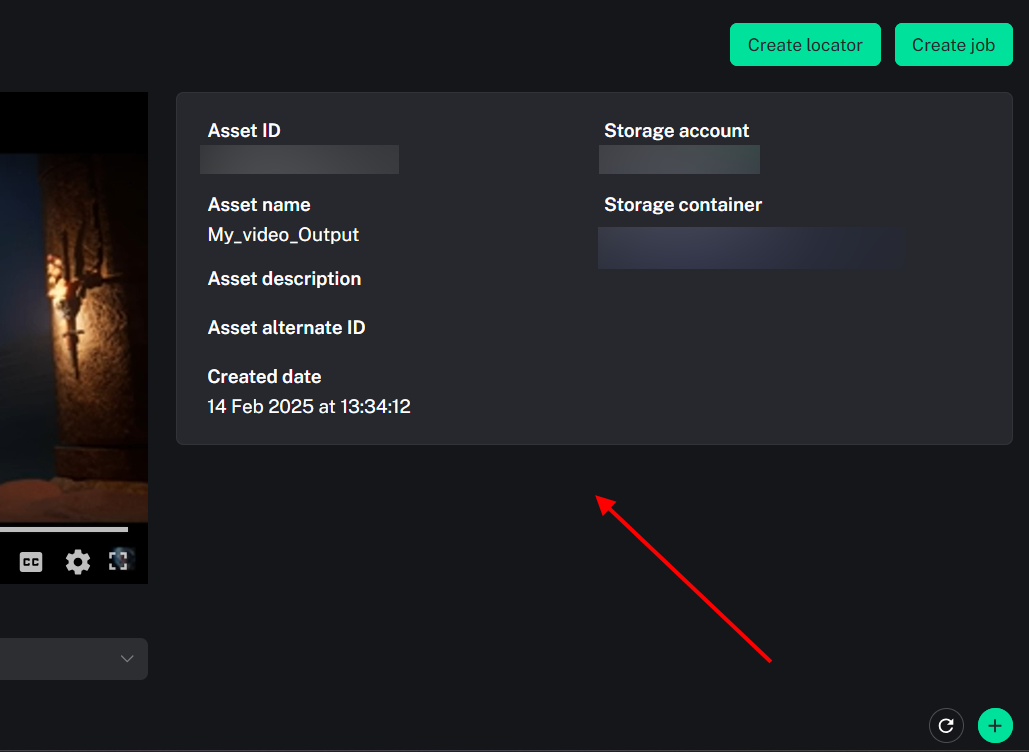

Asset Information
View core asset metadata including storage details and creation information.

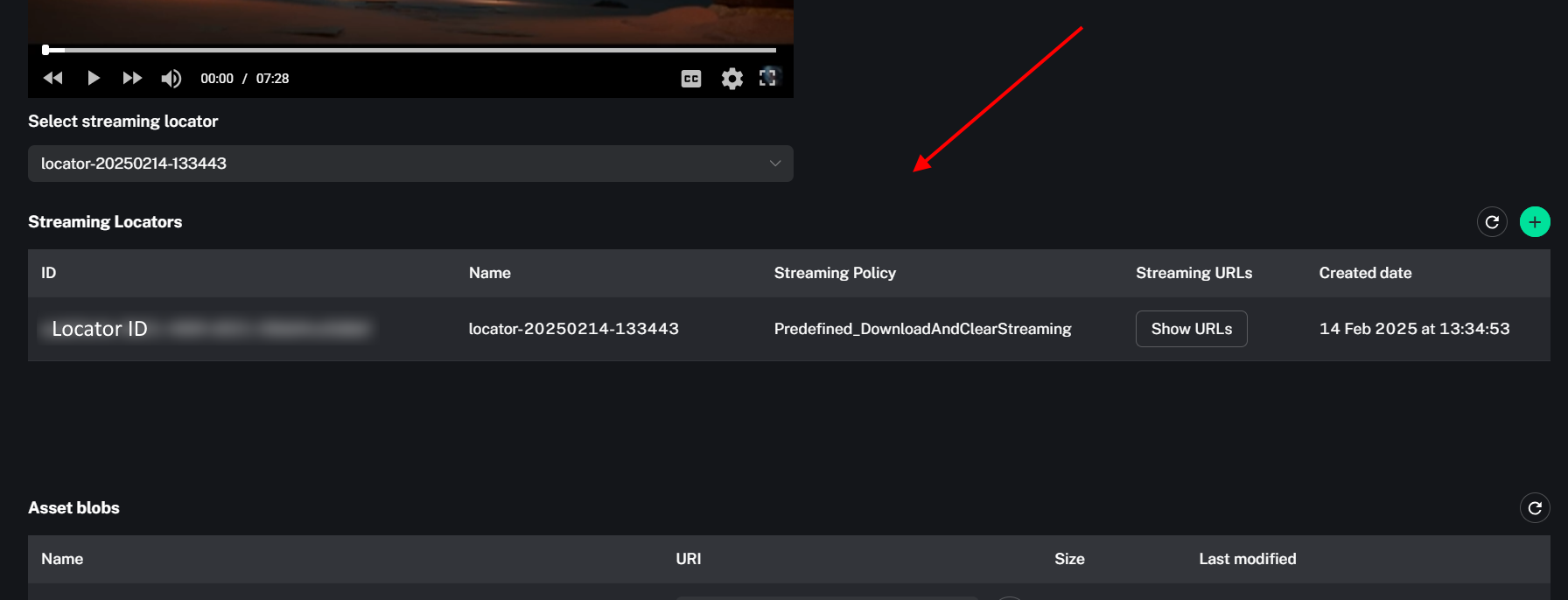

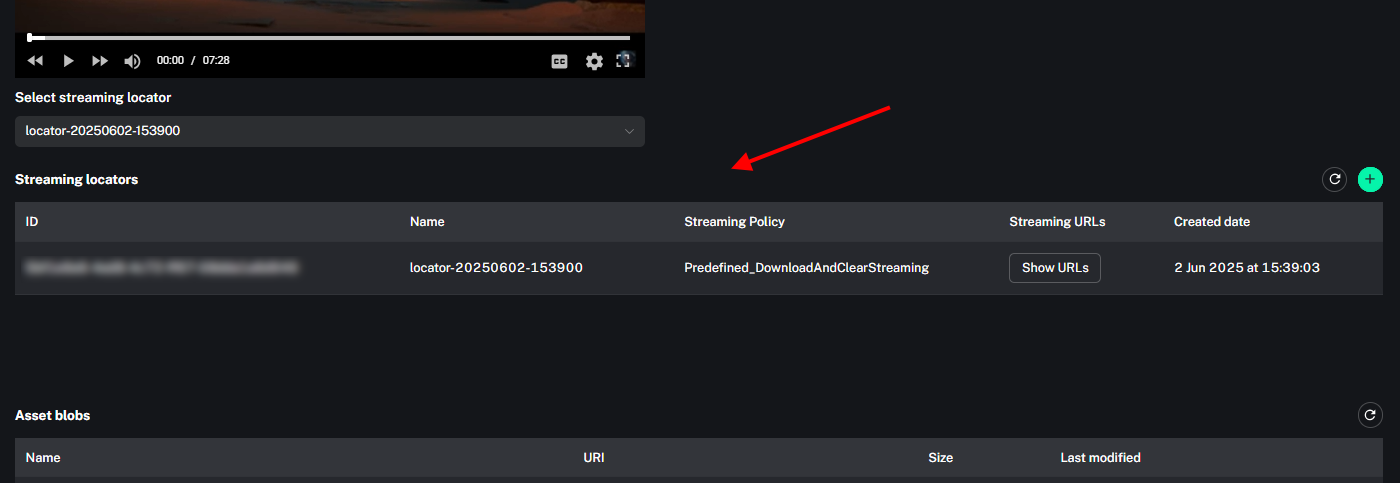

Streaming Locators
Select a created streaming locator in the dropdown menu and access the list of streaming locators associated with this asset.

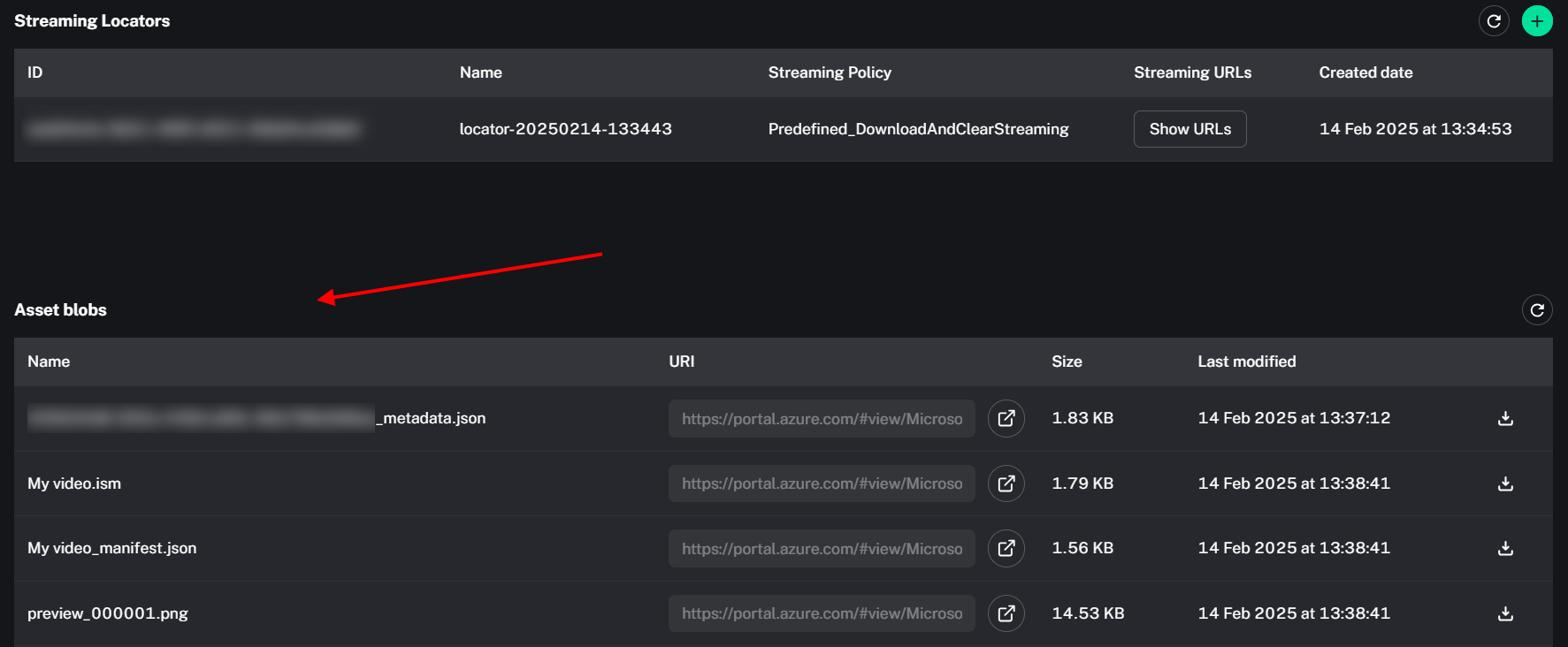

Asset Blobs
View and download individual media components such as transcoded files, thumbnails, and subtitles.
